Product Detail

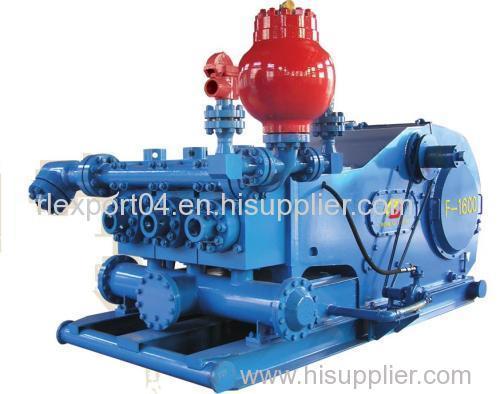

Model No.: F-1600

Production Capacity: 400 sets per year

Delivery Date: 20 days

Certification: Others

power: 1600HP

liner Dia.: 130mm-180mm

Means of Transport: Ocean,Land,Air

Packing: export package

Type: Vacuum Pumps

Brand Name: Rongli

stroke length: 305mm

1. have own factory
2. Top 3 in China
3. triplex single acting piston pump
4. fast delivery
5.API certificate

1)Power:1133KW(1600hp)
2)Strokes:120r/min
3)GearRatio:4.206:1
4)Suction Pipe:305mm

Type		Horizontal Triplex Single		Gear Type		Herringbone Gear
Rated Input Power		1600HP		Gear Ratio		4.206: 1
Rated Stroke		120		Lubrication		Forced & Splashing
Stroke Length		12"		Valve Cavity		API-7#
Inlet Connection Size		12"		Outlet Connection Size		5 1/8" Flange 5000psi
Weight		24572kg		Overall Dimension		4615 × 3276 × 2688mm
SPM	HP	Liner Size(mm) and Pressure Rating(psi)
		7	6-3/4	6-1/4	6	5-1/2	5
		3508	3692	4300	4663	5000	5075
		Displacement(L/S)/(gpm)
120	1600	45.41/720	42.23/669	36.20/574	33.36/529	28.04/444	23.17/367
110	1467	41.63/660	38.71/614	33.19/526	30.58/485	25.70/407	21.24/337
100	1333	37.84/600	35.19/558	30.17/478	27.80/441	23.36/370	19.31/306
90	1200	34.06/540	31.67/502	27.15/430	35.02/397	21.03/333	17.38/275
Based on 100% volumetric efficiency and 90% machianical efficiency
